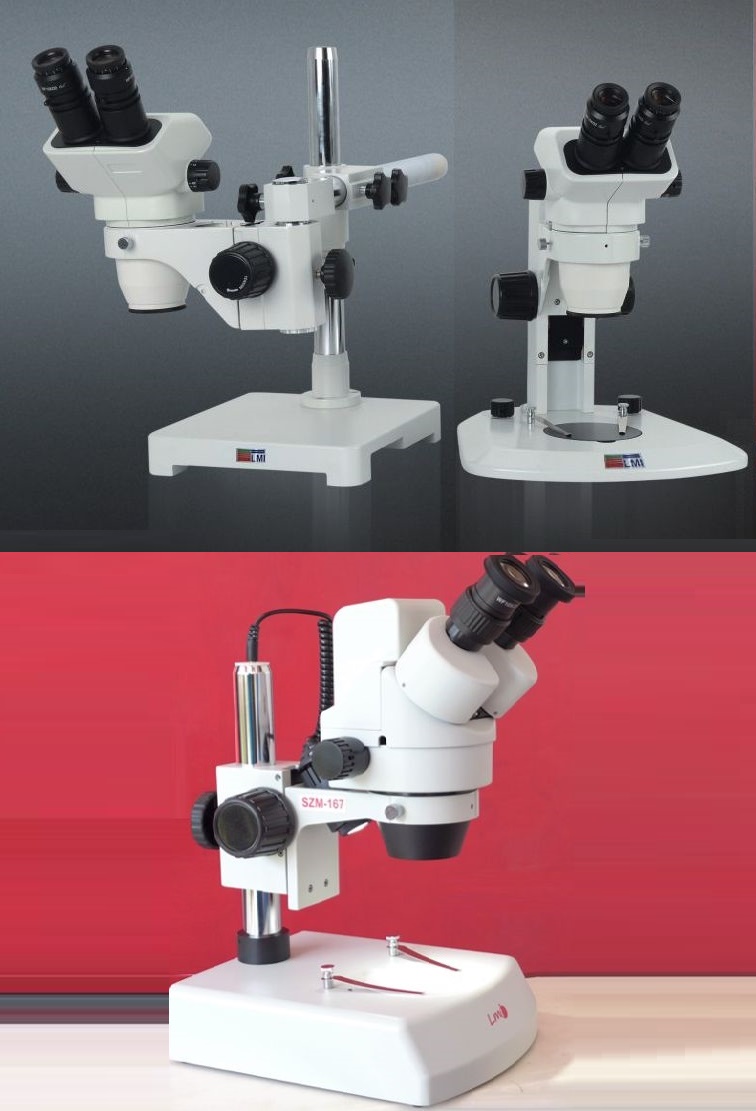

LMI SZM-167 Series Compact and streamlined style, correspond with ergonomic design The new design of the optical system, it improved image quality to new levels, a greater range of clear and high resolution. Wide field of vision, a large zoom ratio, long working distance Integrated design of LED lighting and stand
■ All optical components are through special processing and coated with special film, formed a high-quality flat and good contrast optical images in the wide field. Especially in the peripheral visual field, it is more bright and clear.
■ Zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~45X. Use optional auxiliary lens, the magnification can be 2X~225X.
■ The standard working distance is 100mm, use optional auxiliary lens, the working distance can extend to 26mm~287mm
■ Adopt diopter adjustment eyepiece, ensure the different vision of users to get a clear image.
■ The zoom hand wheel (axial) bilateral settings, easy operation, high precision zoom repeat.
■ Built-in wide-range voltage 110V~240V, top & bottom LED illuminator, uniform lighting and separate control.
■ Brightness is adjusted separately, it can provide long time and same color temperature lighting in whichever light intensity.
■ Stable light intensity, low voltage, low consumption, low heating value and long lifetime
| Model | SZM-167 and SZM-167 with inbuilt digital imaging system |
|---|---|
| Viewing Head | LMI SZM-167 Binocular head, 45° inclined, 360° rotatable
LMI SZM-167T Trinocular head, 45£ inclined,
360° rotatable
LMI SZM-167 Binocular head, 60£ inclined,
|
| Eyepiece | Wide field high eyepiont diopter adjustment eyepiece Wide field high eyepiont diopter adjustment eyepiece WF15X/16mm can mount micrometer Wide field high eyepiont diopter adjustment eyepiece WF20X/12mm can mount micrometer |
| Auxiliary Lens | 0.3X/ 287mm 0.4X/217mm 0.5X/177mm 0.75X/117mm 1.5X/47mm 2X/26mm |
| Focus | focus arm, two focusing knobs are with tension adjustable, adjust range 50mm A2 industry bound focus arm 1 (industry exclusive use) A3 industry bound focus arm 2 (industry exclusive use) |
| Stand | lB4 pillar type sector plain stand lB5 pillar type large plain stand (no hole) lB6 arm type large sector plain stand L1 arm type stand, LED top & bottom illuminator, brightness adjustment L3 pillar type large sector LED stand (brightness adjustment) . Single arm universal stand Double arm universal stand Transmitted light base, be used |
| Other light source | Ring light/LED/Fiber |
| Photo device | Photo tube with PK mount and 4X photo eyepiece |
| TV device | 0.35X/0.5X/1.0X C-mount adapter |
| Others | Precision measurement platform dark field condenser jewelry clip |
| Model : SZM167 with 5MP inbuilt Digital Facility | 5MP inbuilt high sensitive C-MOS Imaging system with image analysis software. |
