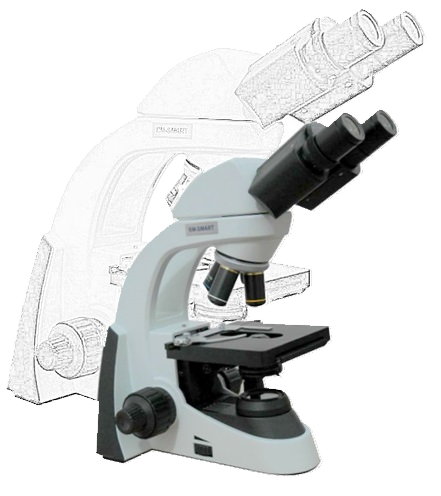

Smart

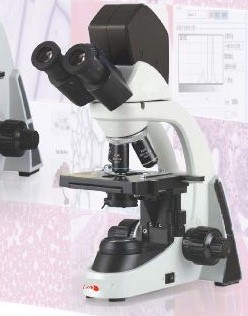

Smart with Digital Facility

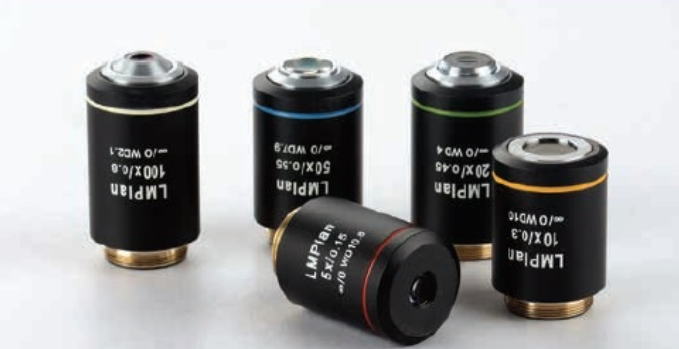

Objectives

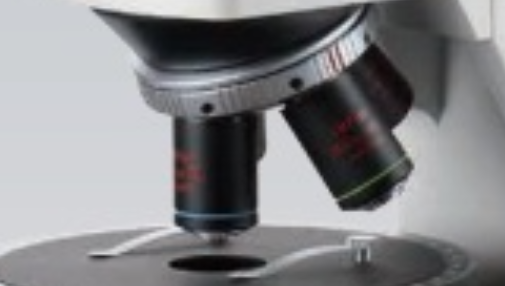

Nose Piece

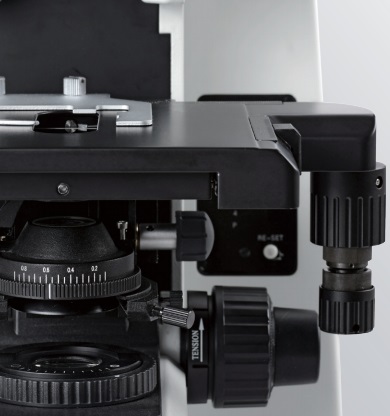

Stage
Objective
Body
|
Specification
|
|
|
Optical System
|
infinity / finity Optical System , anti fungal
|
|
Observation tube
|
30° inclined binocular head, interpupillary distance: 50-75mm, ±5 diopter adjustable 30° inclined trinocular head, splitting ratio R:T=80:20, interpupillary distance: 50-75mm, ±5 diopter adjustable, 25° inclined binocular head, 360° rotatable ,interpupillary distance: 50-75mm, ±5 diopter adjustable 30° inclined digital viewing head, built-in 3.0 mega pixels CMOS Camera and Image analysis software, USB output; interpupillary distance: 50-75mm, ±5 diopter adjustable |
Eyepiece
|
wide field eyepiece WF10X/18，（option pointer and micrometer）
WF15X/13mm，WF20X/10mm
|
|
Objective
|
Achromatic 4X/0.10 W.D.=13mm
|
|
Achromatic 10X/0.25 W.D.=6.3mm |
|
|
Achromatic 40X/0.65 (S) W.D.=0.44mm |
|
|
Achromatic 100X/1.25 (S,Oil) W.D.=0.3mm |
|
|
Plan Achromatic 4X/0.10 W.D.=16mm |
|
|
Plan Achromatic 10X/0.25 W.D.=2mm |
|
|
PlanAchromatic 40X/0.65 (S) W.D.=0.66mm |
|
|
Plan Achromatic 100X/1.25 (S,Oil) W.D.=0.42mm |
|
|
Stage
|
Coaxial mechanical stage in 140X132mm size and 76x50mm travel range . Coaxial coarse and fine adjustment, with
coarse adjustment stop and tightness adjustment
|
|
Nosepiece
|
Quadruple backward nosepiece |
|
Condenser
|
N.A.=1.25 Abbe condenser and iris diaphragm and Dark Field slot ,with filter holder |
|
Illumination
|
Mail supply 90-240V adaptable，9V20W halogen lamp with intensity control . LED lamp available in 3W , 5W, and 9W，with intensity control |
|
Filter
|
Blue /yellow /green |
