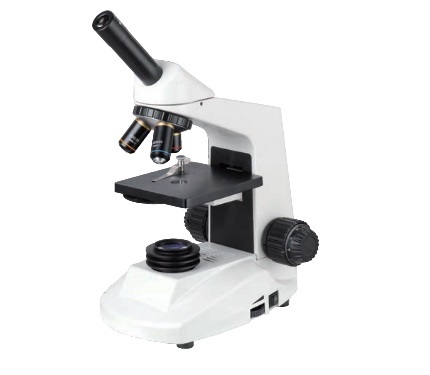

Biological Microscope It is a traditional microscope for education with modern optical technology. With high-quality “LMI” microscopes Design. basic design, with stable ,safety and efficiency, which makes the operators to use the microscope simplest.
■ This microscope can not be used with many accessories to realize bright field,simple polarization ,dark field, phase contrast, Fluorescent.
■ This microscope can be used in variety of biological applications,such as teaching and laboratory.
| Model | BM 150/BM-ED |
|---|---|
| Eyepiece | High eyepoint wide field eyepiece WF10X/18....option pointer and micrometer... wide field eyepiece WF15X/13 /WF 20X/10 |
| Objective | Achromatic objective 4X/10X/40X/100X |
| Viewing head | Monocular head ,45 Deg. inclined and rotating |
| Nosepiece | Triple nosepiece Quadruple nosepiece |
| Stage | Coaxial mechanical stage in 140X130mm size and 50X75mm travel range |
| Accessory for stage | Press style clips attachable mechanical stage in 60mmX30mm travel range |
| Condenser | N.A.0.65 single lens condenser N.A.=1.25 ABBE condenser and iris diaphragm,with filter holder |
| Illuminator | Mail supply 90-240V adaptableì6V20W halogen lamp with intensity control Externally transformer, 12V15W halogen lamp with intensity control Externally transformer, 12V15W halogen lamp with intensity control |
| Filter | Blue /yellow /green |
