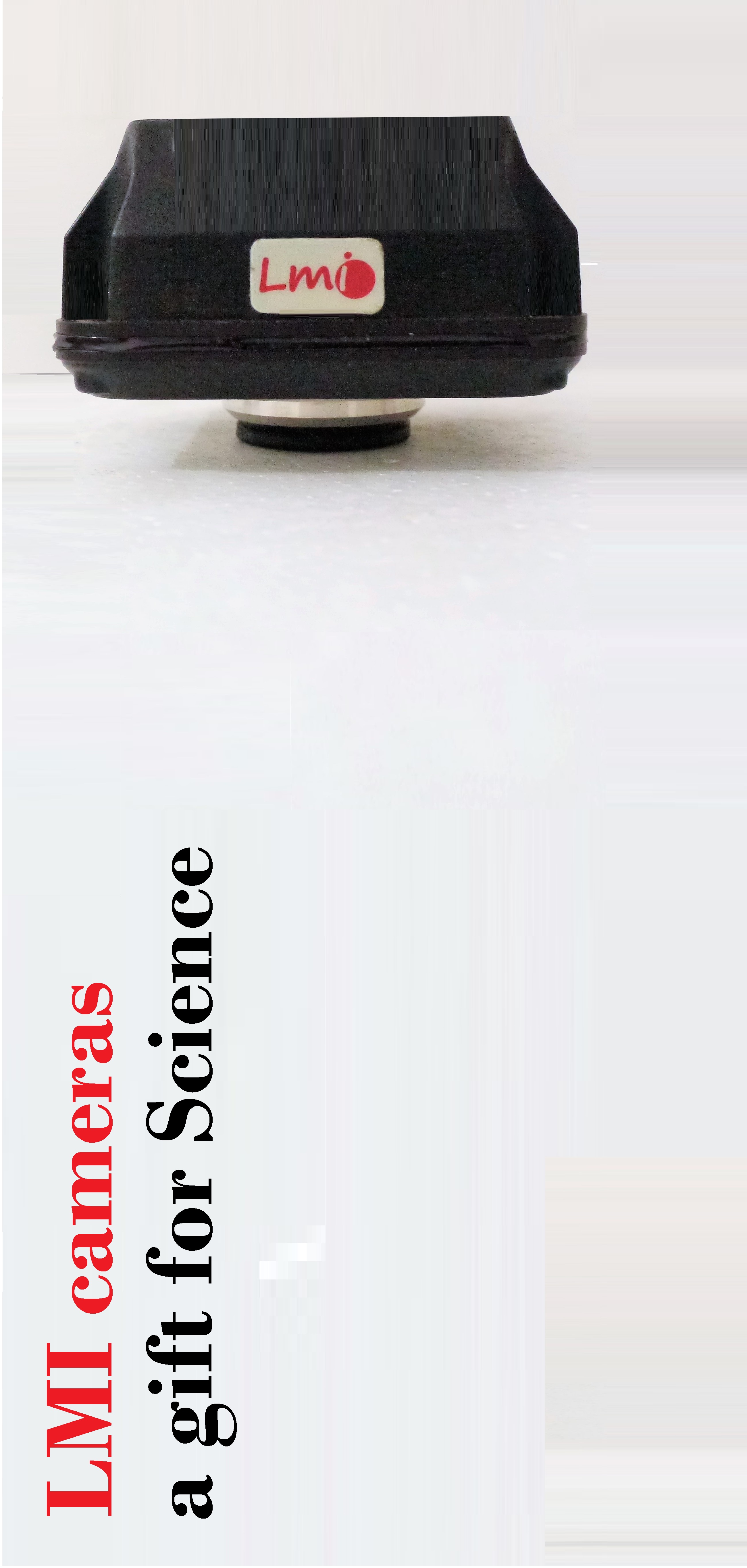

CMOS Microscopy Cameras for Research
Standard C-Mount camera with Aptina CMOS sensor;
With hardware resolution among 1.2M to 14M;
On-board memory for perfect synchronization，higher frame rate and stable performance;
High performance cooling structure, ensures low image noise;
USB2.0 interface ensuring high speed data transmission;
Ultra-Fine color engine with perfect color reproduction capability;
With advanced video & image processing application ToupView;
Providing Windows/Linux/OSX multiple platform SDK;
camera is luxurious USB2.0 CMOS camera with frame buffers and it adopts
ultra-high performance CMOS sensor as the image-picking device， and USB2.0
is used as the data transfer interface.
can be widely used in brightfield environment and microscope image capture and anaysis with moderate speed.
comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET
| MODEL
| Sensor Size
| Pixel (um)
|
FPS/Resolution | Binning
| Exposure
| | MCA-1400 |
1/2.3"(6.45X4.603)
| 1.4X1.4 |
2.7@4096X3288
10@2048X1644
35@1024X822 | 1X1,2X2,4X4 |
0.4ms~2000ms |
| MCA-1000 |
1/2.3"(6.44x4.616) |
1.67X1.67 |
3.7@3584X2748
13@1792X1374
35@896X684 | 1X1,2X2,4X4 |
0.4ms-2000ms |
| MCA-1000S |
1/2.4"(5.825X4.369 |
1.67X1.67 |
3.9@3488X2616
15@1744X1308
47@872X654 | 1X1,2X2,4X4 |
0.4ms-2000ms |
| MCA-900S |
1/2.5"(5.451X4.088) |
1.67X1.67 |
4.4@3264X2448
17@1600X1200
55@800X600 | 1X1,2X2,4X4 |
0.4ms-2000ms |
| MCA-500 |
1/2.5"(5.71X4.28) |
2.2X2.2 |
6.8@2592X1944
18@1280X960
| 1X1,2X2,4X4 |
0.294ms-2000ms |
| MCA-300 |
1/2"(6.551X4.92) |
3.2X3.2 |
11.5@2048x1536
32@1024X768
45@680X510 | 1X1,2X2,3X3 |
0.244ms-2000ms |
| MCA-300S |
1/2"(5.36X4.92) |
2.5X2.5 |
12@2048x1536
48@1024X768 | 1X1,2X2,3X3 |
0.244ms-2000ms |
| MCA-130 |
1/3"(4.6X3.7) |
3.6X3.6 |
15@1280x1024
26@640x512 | 1X1,2X2 |
0.14ms-2000ms |
