EA Primeinverted

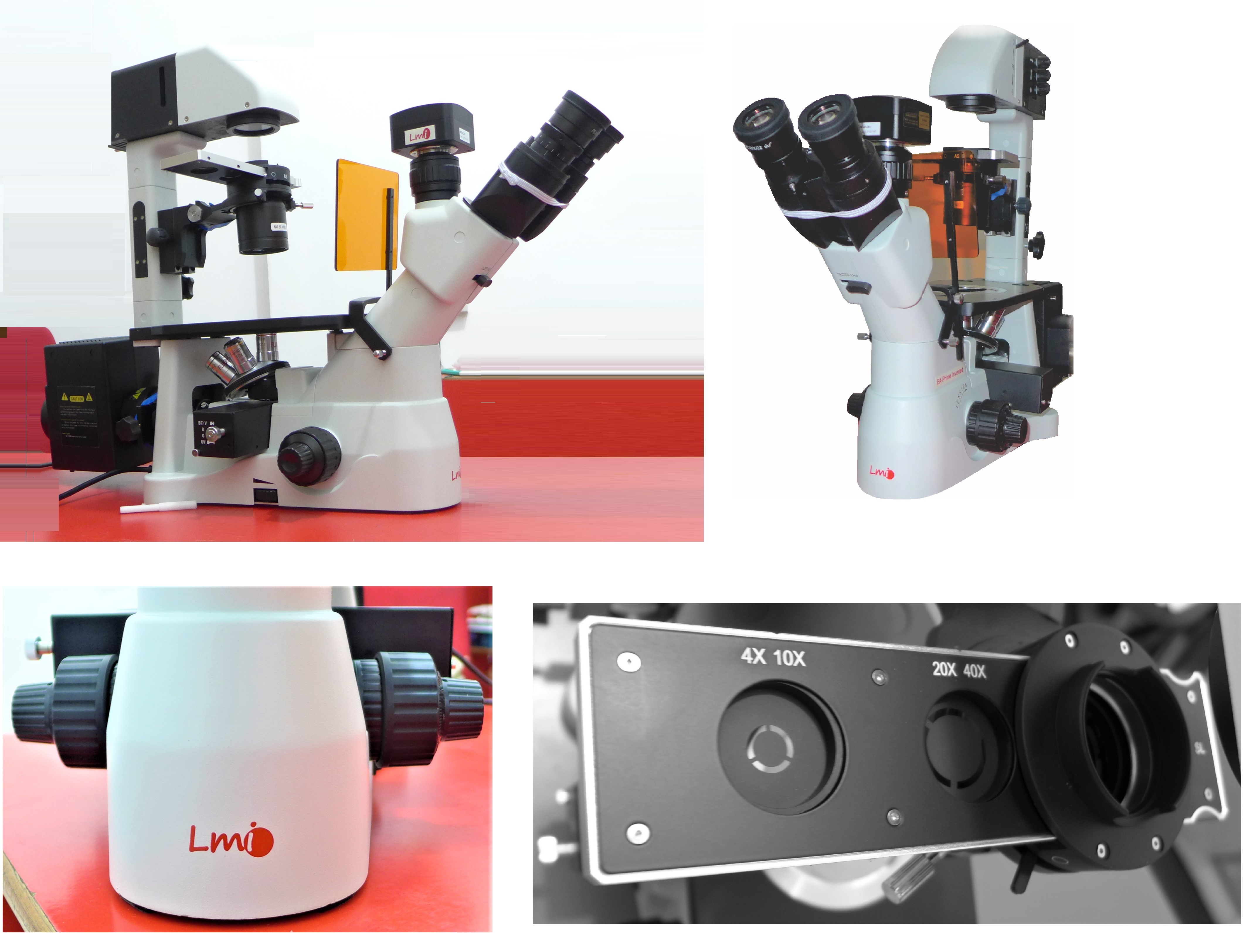

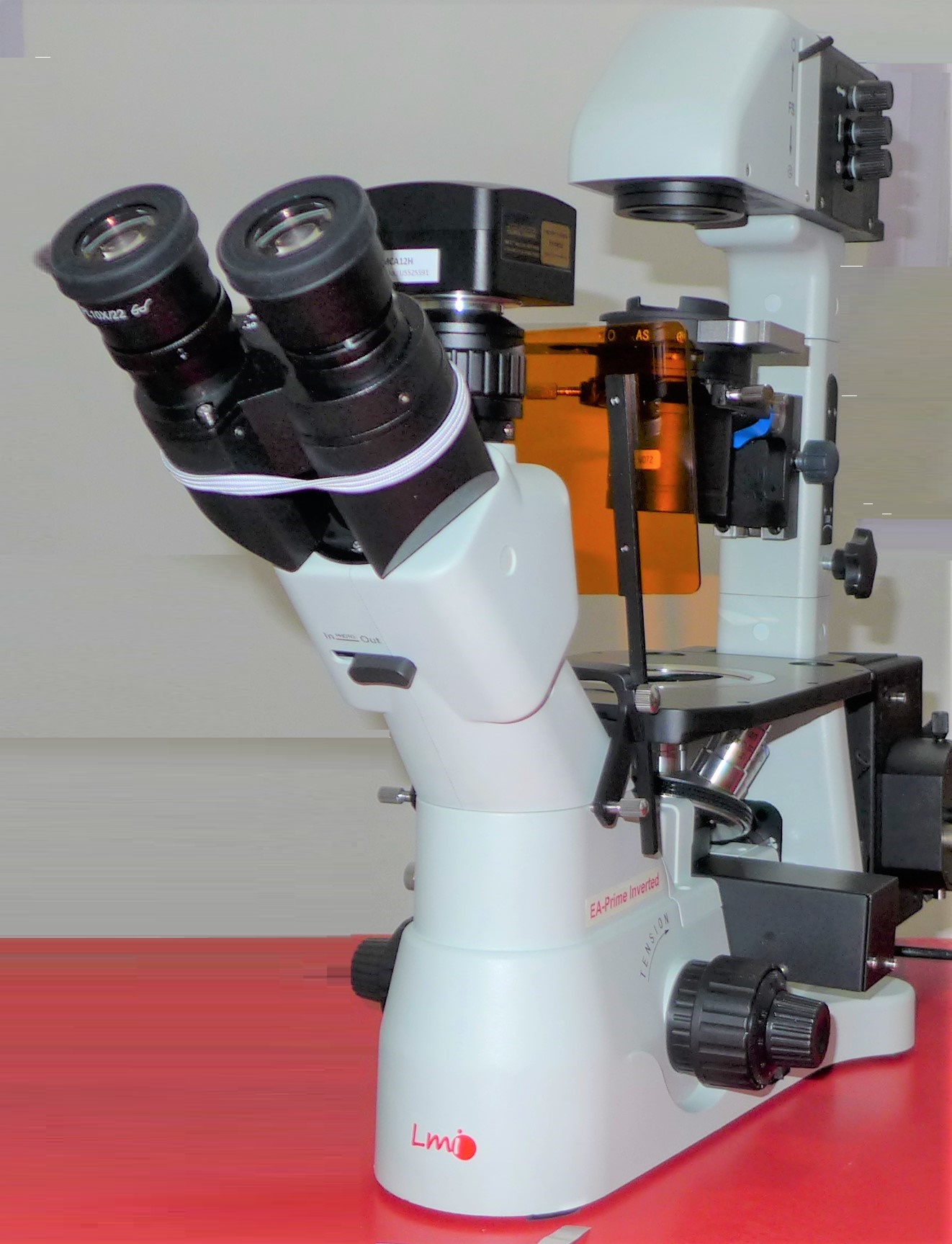

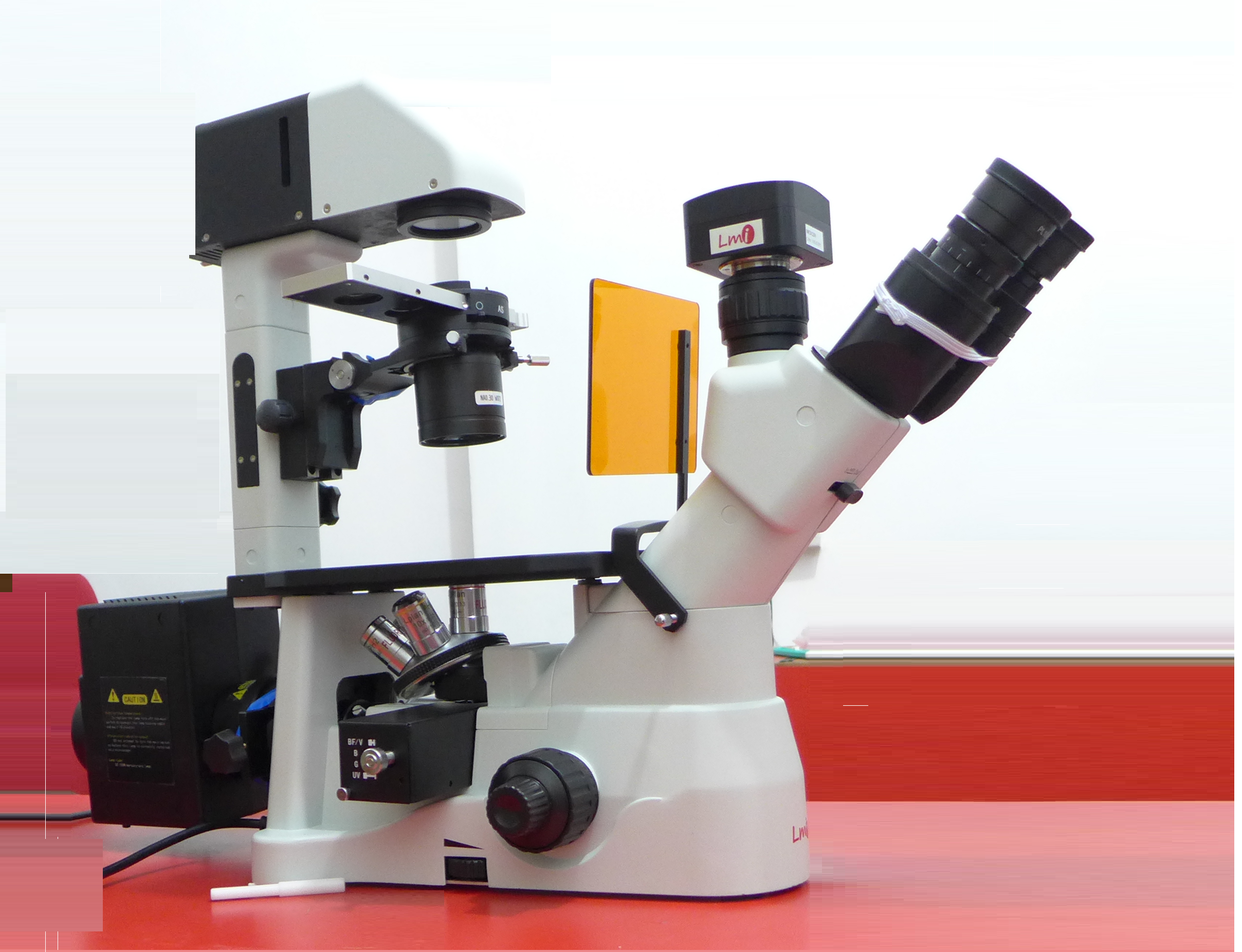

EA series inverted fluorescence microscope EA laboratory inverted fluorescence microscope,
designed for cell culture observation, to get details of cell growing process, internal spontaneous
fluorescence phenomenon, living cell fluorescence transfection, protein transfer and etc.
■ New generation of infinity color corrected optical systems and professional plan semi-apochromatic
fluorescence objectives, present you sharp and bright fluorescence image.
■ Professional fluorescence filter system, optical material and broadband multilayer coating, high
transmissivity, mould proof, heat insulation and safety protection system, mercury lam digital
power-supply control.

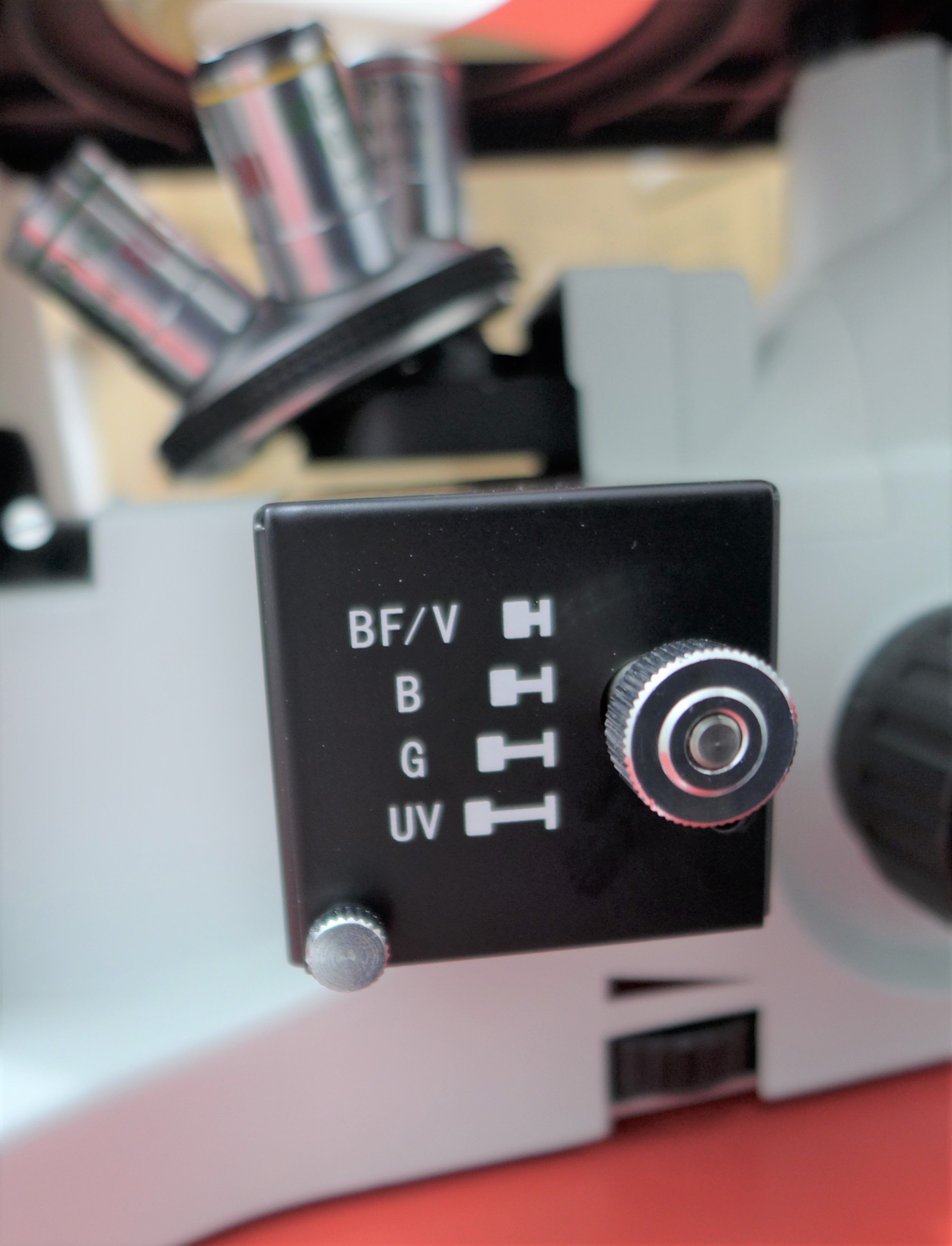

■ Swallow tail slide switch easy to change filter cubes, three paths for
fluorescence and one for bright field, four filter cubes can be mounted.
■ EA Prime serieis is the advance version of Inverted Microscope series with 22mm field and upgradable to
Epi-fluorescence.
■ 6V/30W transmission illuminator/ High intensity 5W/9W LED , various performances, bright-field, dark-field,
phase contrast, polarization observations.
| Model | EA-Primeinverted |
|---|---|
| Optical system | Infinity corrected optical system, Anti Fungal |
| Eyepiece |
|
| Objective |
|

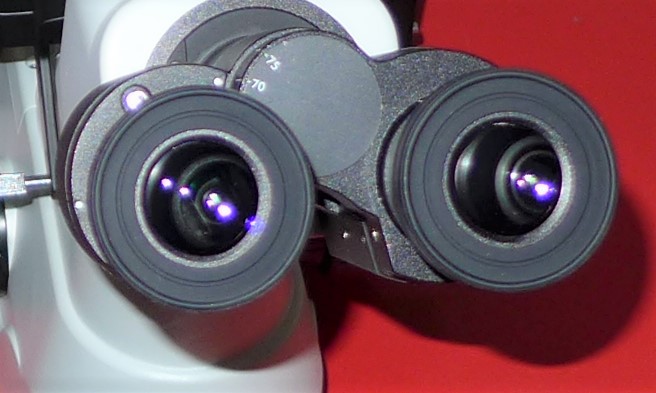

| Viewing head | 45° Siedentopf binocular and trinocular viewing head, interpupillary distance adjustment range 54-75mm/50-75mm, eyepiece tube with ±5 diopter adjustment light splitting ratio: binocular 100%; binocular 0%/trinocular 100%
|

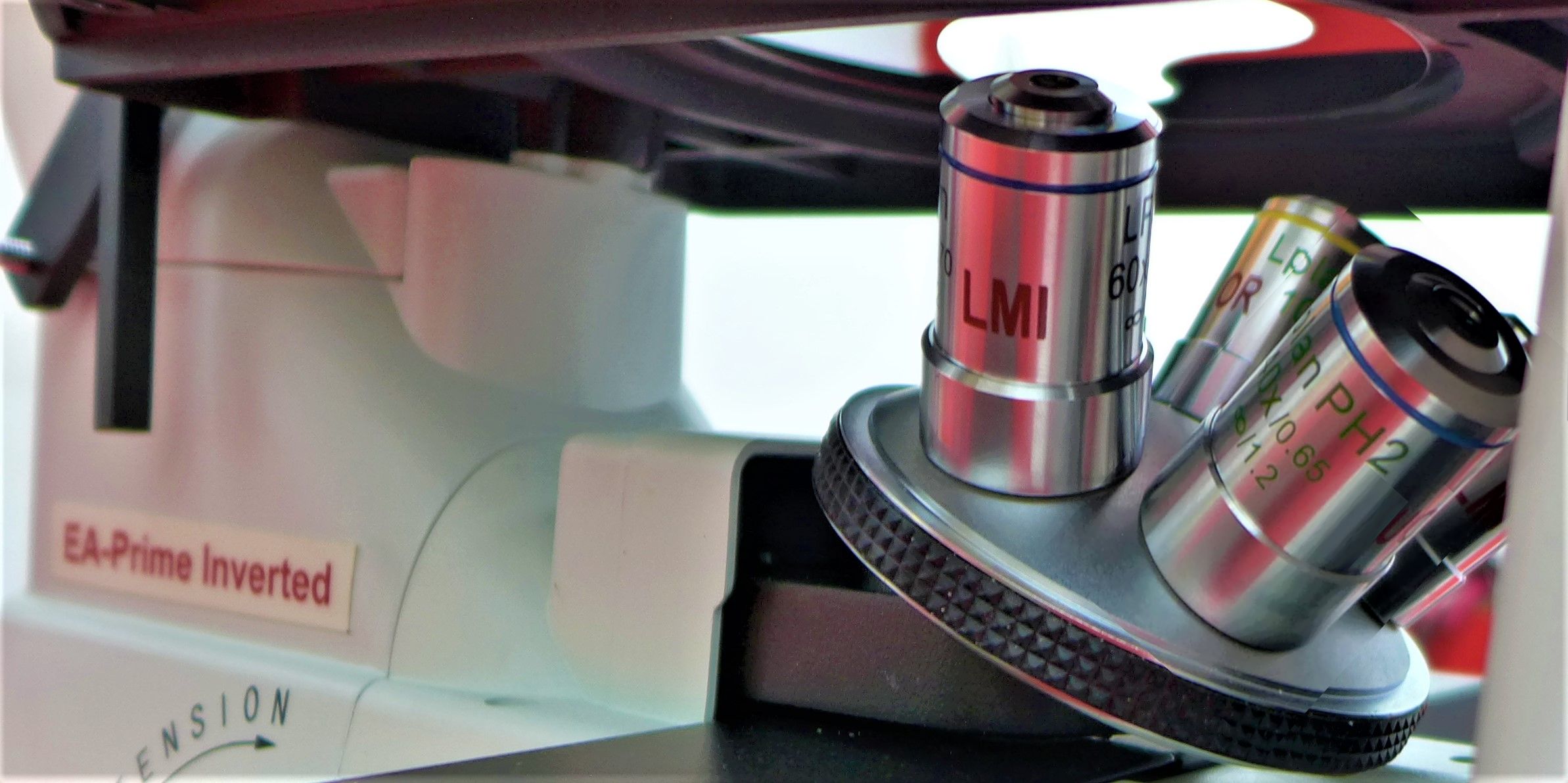

| Nosepiece | Quintuple nosepiece |
| Stage and accessories | 160x250mm platform; Mechanical stage, move range 120x78mm; Extension plate; Glass stage; Metal stage with slot; Terasaki holder; Holder for 35mm Tissue culture vessel. |
| Focus adjustment | Integrated all-metal high-pressure die-casting body, precision transmission mechanism with pinion and rack. Coarse focusing scope: 25mm, with tightness adjustment and place limit set, fine adjustable precision: 0.002mm ,minimal read 0.002mm/
|

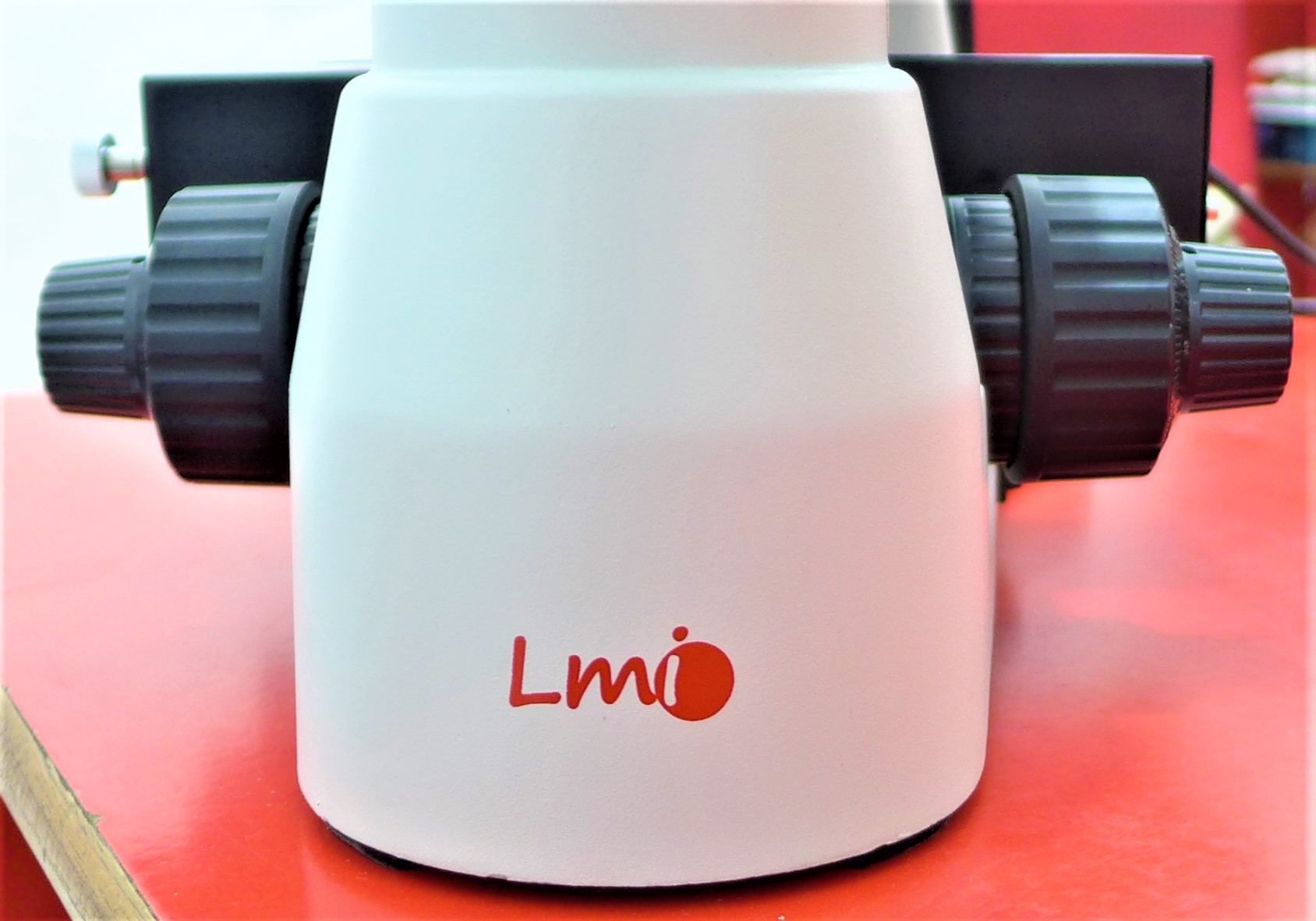

| Microscope body | Coaxial focus system, coarse focus distance 25mm, fine focus precision 0.002mm, with degree of tightness adjustment, built-in 90-240V wide voltage transformer. |

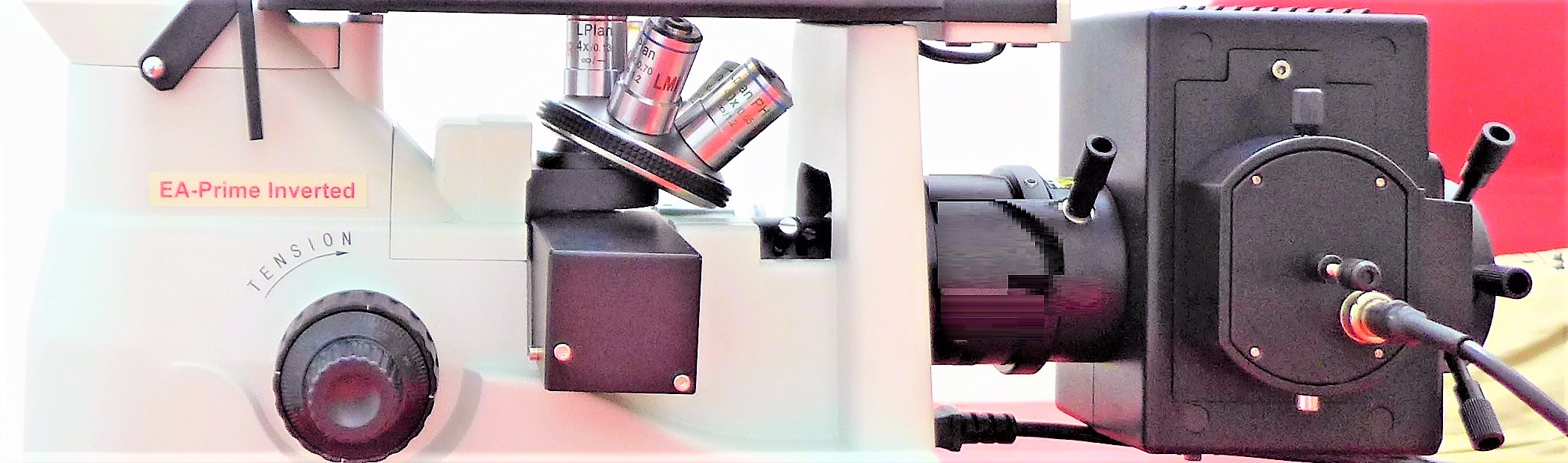

| Reflected fluorescence illumination system | Kohler reflected illuminator, with iris field diaphragm, center adjustable 100HG mercury lamp house, center and focus adjustable. With mirror, center and focus adjustable. Digital mercury power supply, 90-245VAC wide voltage 100W DC mercury lamp Centring objective for mercury lamp optical bandpass filter cubes UV1/B1/G1/voilet 30ND25 attenuation pad |
| Transmitted illumination system |

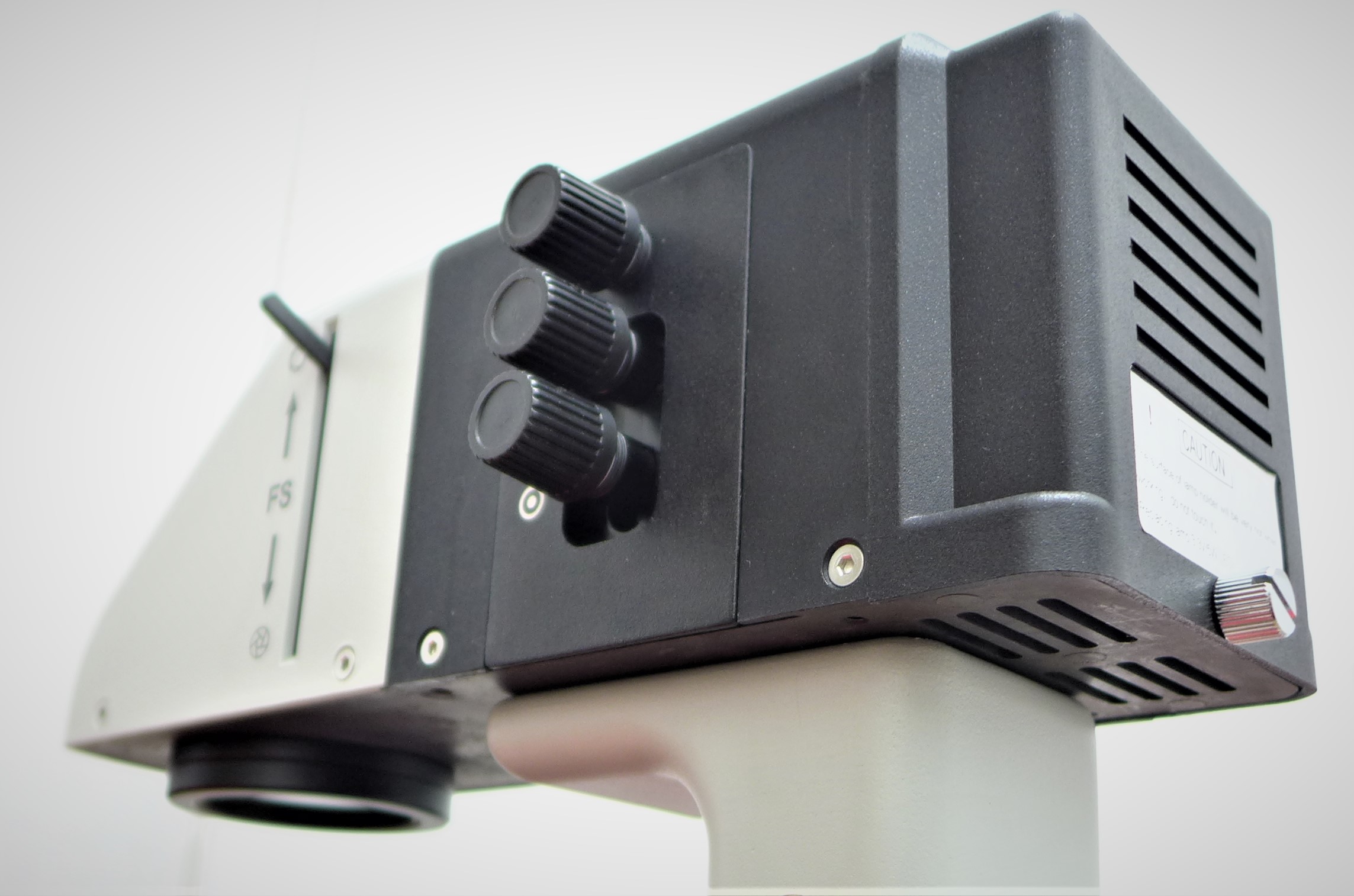

Kohler illumination, 6V/30W halogen bulb/5W LED, center and brightness adjustable. Iris aperture diaphragm and field diaphragm N.A.0.3 long working distance condenser, W.D.72mm,. N.A.0.3 long working distance condenser, W.D.72mm, condenser stand can be shifted out from the light path to increase the working distance to 150mm LBD color temperature change filter, IF550 contrast green filter |
| Phase contrast accessories |

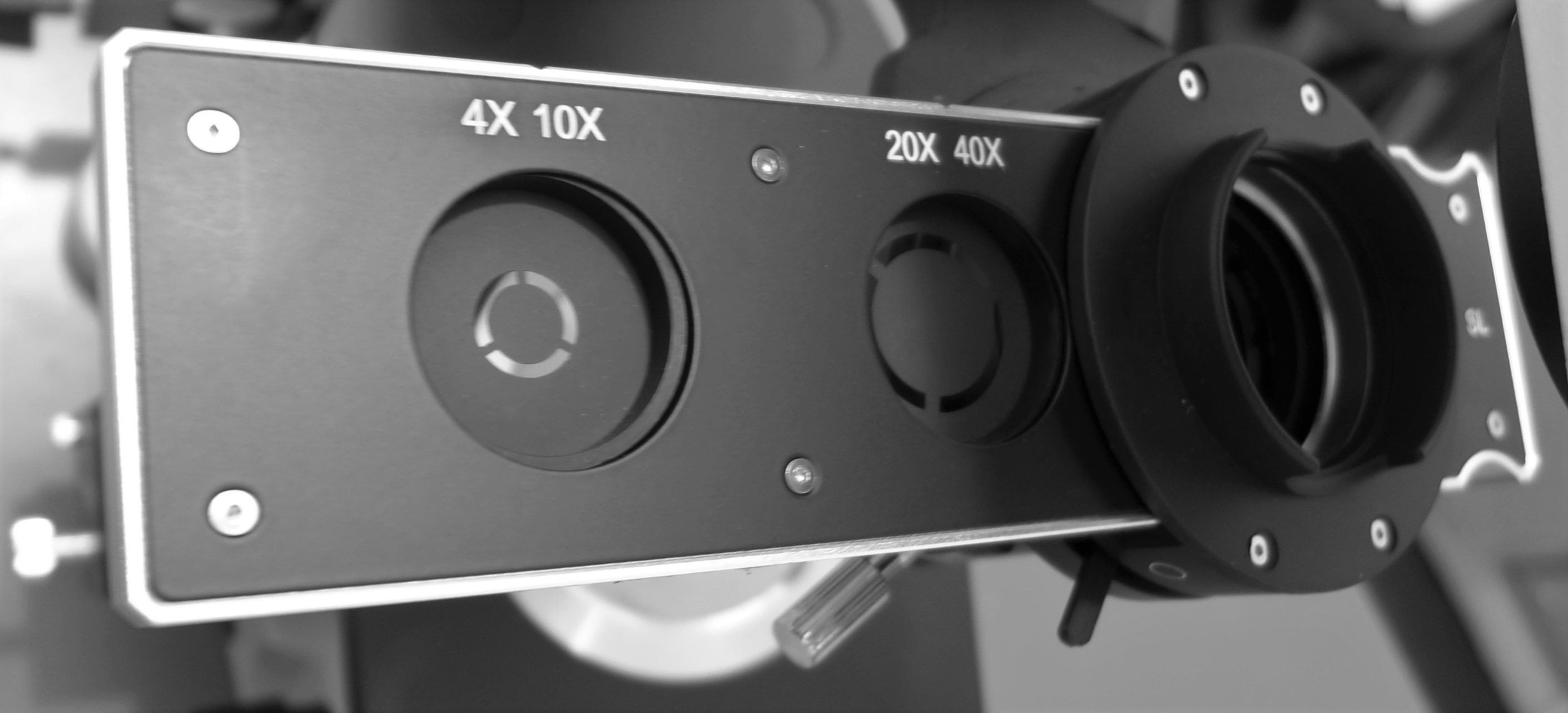

EASL type 10X-40X phase contrast slider, center adjustable SL1 type 10X-40X phase contrast slider, center adjustable |
| CCD adaptor | C mount adaptor |
| Fluorescence filter |
(note :four filter cubes can be adjusted and can custom-made.) |
| Camera and Software | Choose from the LMI camera and software guide |
