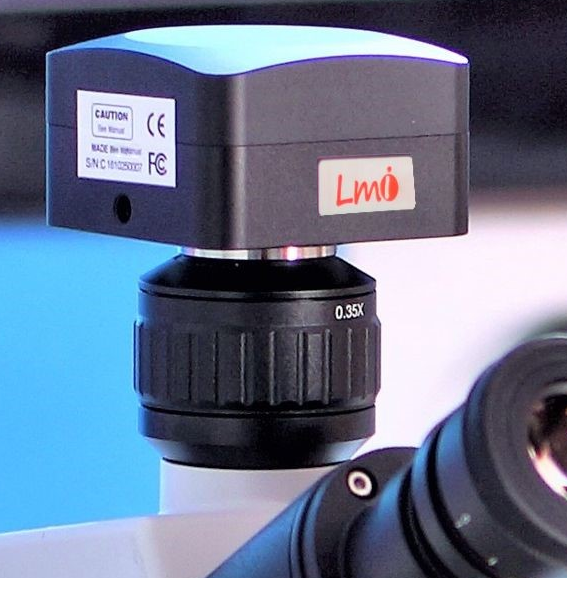

LMI-CCD Series USB2.0 CCD Cameras

LMI-CCD is an ultra-high performance HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface. LMI-CCD comes with advanced video & image processing application ; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The LMI-CCD can be widely used in brightfield light environment and microscope image capture and anaysis.

CAMERA MODEL	Sensor	Sensor Size	Pixel (um)	G Sensitivity,Dark Signal	FPS/Resolution	Binning	Exposure
MCC-500	ICX655AQ(C)	2/3"(8.44x7.07)	3.45x3.45	420mv with 1/30s 4mv with 1/30s	4.3@2448x2050 10.5@960x720	1x1	0.22ms~60s
MC500S	ICX452AQ(C)	1/1.8"(7.19x5.39)	2.775x2.775	260mv with 1/30s 16mv with 1/30s	4@2592x1944 35@560x420	1x1,2x2	0.212ms~77ms
MCC-300	ICX252AQ(C)	1/1.8"(7.06x5.30)	3.45x3.45	270mv with 1/30s 12mv with 1/30s	6@2048x1536 41@640x480	1x1,2x2	0.178ms~77ms
MCC-140	1.4M/ICX285AQ(C)	2/3"(8.77x6.60)	6.45x6.45	1240mv with 1/30s 10mv with 1/30s	15@1360x1024	1x1	0.126ms~240s
MCC-140(M)	1.4M/ICX285AL(M)	2/3"(8.77x6.60)	6.45x6.45	1300mv with 1/30s 11mv with 1/30s	15@1360x1024	1x1	0.126ms~240s

CAMERA MODEL

Sensor

Sensor Size

Pixel (um)

G Sensitivity,Dark Signal

FPS/Resolution

Binning

Exposure

MCC-500

ICX655AQ(C)

2/3"(8.44x7.07)

3.45x3.45

420mv with 1/30s 4mv with 1/30s

4.3@2448x2050 10.5@960x720

1x1

0.22ms~60s

MC500S

ICX452AQ(C)

1/1.8"(7.19x5.39)

2.775x2.775

260mv with 1/30s 16mv with 1/30s

4@2592x1944 35@560x420

1x1,2x2

0.212ms~77ms

MCC-300

ICX252AQ(C)

1/1.8"(7.06x5.30)

3.45x3.45

270mv with 1/30s 12mv with 1/30s

6@2048x1536 41@640x480

1x1,2x2

0.178ms~77ms

MCC-140

1.4M/ICX285AQ(C)

2/3"(8.77x6.60)

6.45x6.45

1240mv with 1/30s 10mv with 1/30s

15@1360x1024

1x1

0.126ms~240s

MCC-140(M)

1.4M/ICX285AL(M)

2/3"(8.77x6.60)

6.45x6.45

1300mv with 1/30s 11mv with 1/30s

15@1360x1024

1x1

0.126ms~240s

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter)
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#/VB.NET, Directshow, Twain, Labview
Recording System	Still Picture and Movie
OPERATING ENVIRONMENT
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10 (32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher Memory: 2GB or More,CD-ROM
USB port:	USB2.0 High-speed Port
Display:	17" or Larger
