EA-100i ntelligent ECO system Based on the concept of energy conservation and environment protection, EA-100i is designed with ECO system. The illumination power can be automatically on or off through infrared induction.

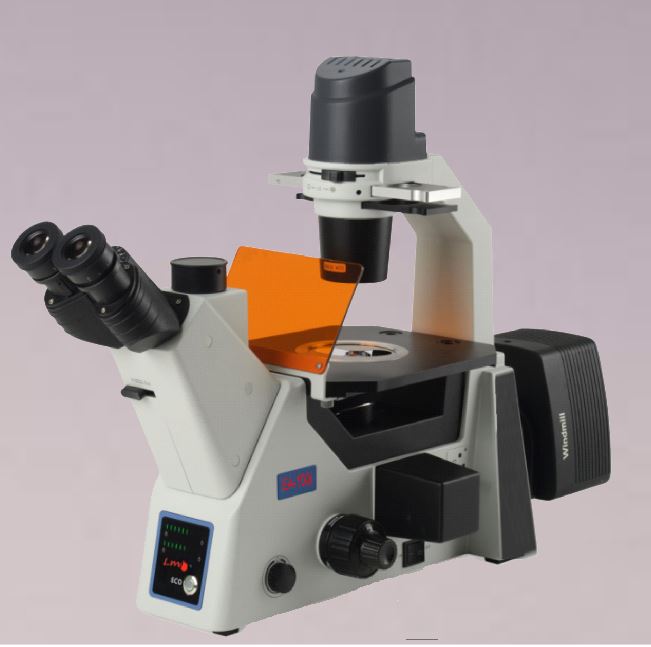

Inverted LED fluorescence microscope ,
designed for convenient cell culture observation, to get details of cell growing process, internal spontaneous
fluorescence phenomenon, living cell fluorescence transfection, protein transfer and etc.
■ New generation of High contrast infinity color corrected optical systems and professional Fluorescence /plan semi-apochromatic
fluorescence objectives, present you sharp and bright fluorescence image.
■ Professional fluorescence filter system switching by servo motor, optical material and broadband multilayer coating, high
transmissivity, mould proof, heat insulation and safety protection system,
power-supply control.
■ Swallow tail slide switch easy to change filter cubes, three paths for
fluorescence and one for bright field, four filter cubes can be mounted.
■ EA 100i is the advance version of Inverted Microscope series with 22mm field
■ High intensity 5W/9W LED , various performances, bright-field, dark-field,
phase contrast, polarization observations upgradable to DIC.
| Model | EA-100i |
|---|---|
| Optical system | Infinity corrected optical system, Anti Fungal |

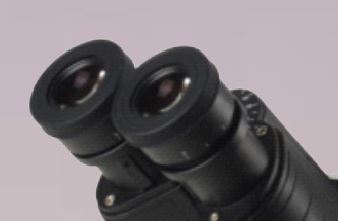

| Eyepiece |
|

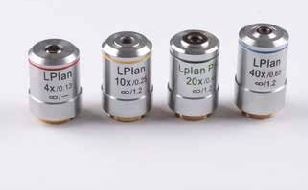

| Objective |
|
| Viewing head | 45° Siedentopf binocular and trinocular viewing head, interpupillary distance adjustment range 54-75mm/50-75mm, eyepiece tube with ±5 diopter adjustment light splitting ratio: binocular 100%; binocular 0%/trinocular 100%
|
| Nosepiece | Quintuple nosepiece |

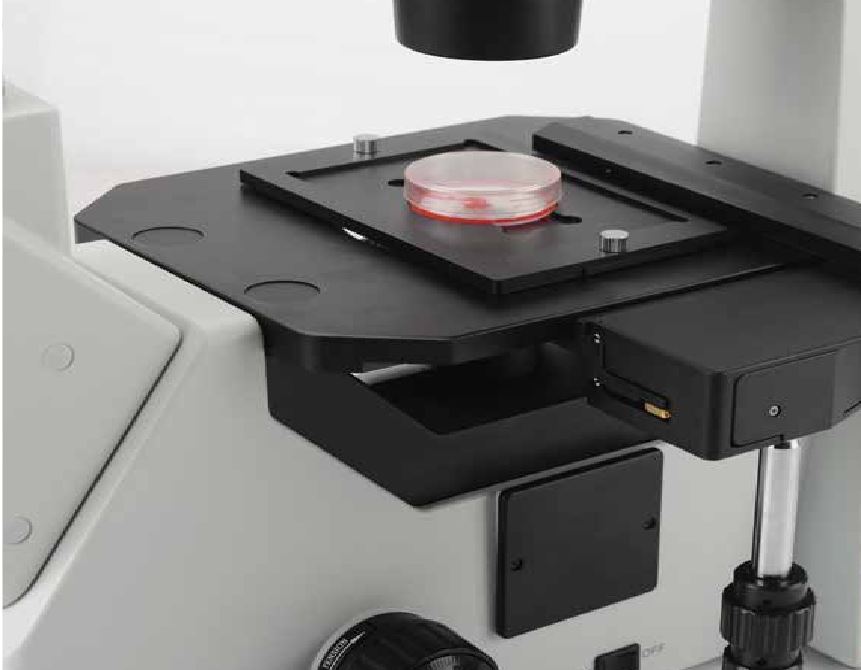

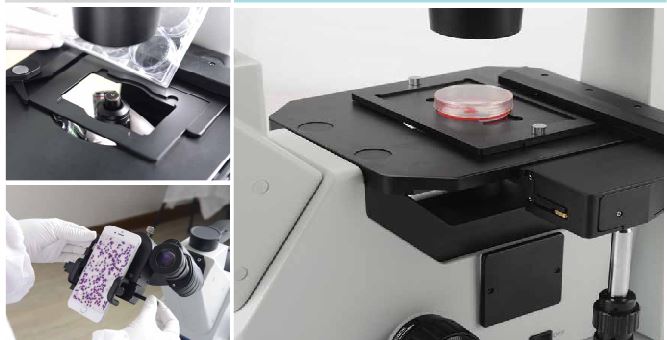

| Stage and accessories |
215mm X 250mm fixed stage; mechanical stage attachable, moving range: 120mm X 80mm; extension plate; slide holder;
Petri dish holder; Teraseki holder; metal plate; glass plate.
|
| Focus adjustment |
Biological frame with coaxial focus system, coarse range: 9mm (6.5mm up and 2.5 down), fine precision: 0.002mm. With
upper limit and tension adjustment.
|
| Microscope body | Coaxial focus system, coarse focus distance 25mm, fine focus precision 0.002mm, with degree of tightness adjustment, built-in 90-240V wide voltage transformer. |
| Reflected fluorescence illumination system | Kohler reflected illuminator, with iris field diaphragm, center adjustable LED fluorescence lamp house,Four-bands switching by Servo Motor,UV1 Filter-385nm LED,B1 Filter-470nm LED, G1 Filter-560nm LED inside. UV1/B1/G1/voilet 30ND25 attenuation pad |
| Transmitted illumination system |
Kohler illumination, 6V/30W halogen bulb/5W LED, center and brightness adjustable. Iris aperture diaphragm and field diaphragm N.A.0.3 long working distance condenser, W.D.72mm,. N.A.0.3 long working distance condenser, W.D.72mm, condenser stand can be shifted out from the light path to increase the working distance to 150mm LBD color temperature change filter, IF550 contrast green filter |

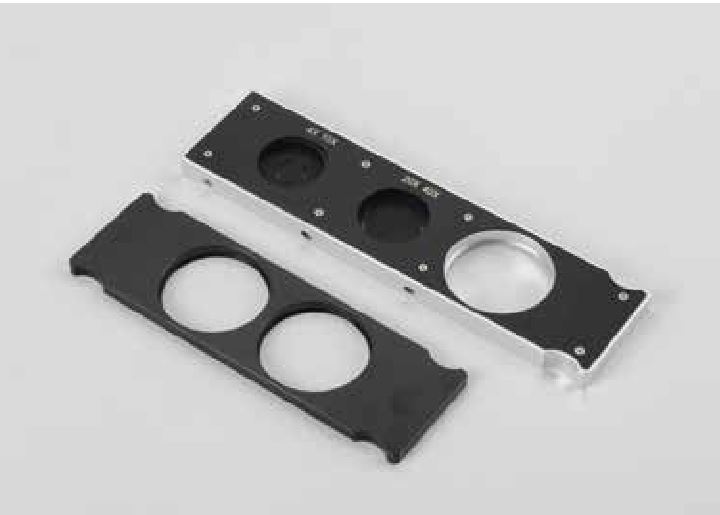

| Phase contrast accessories |
EASL type 10X-40X phase contrast slider, center adjustable SL1 type 10X-40X phase contrast slider, center adjustable |

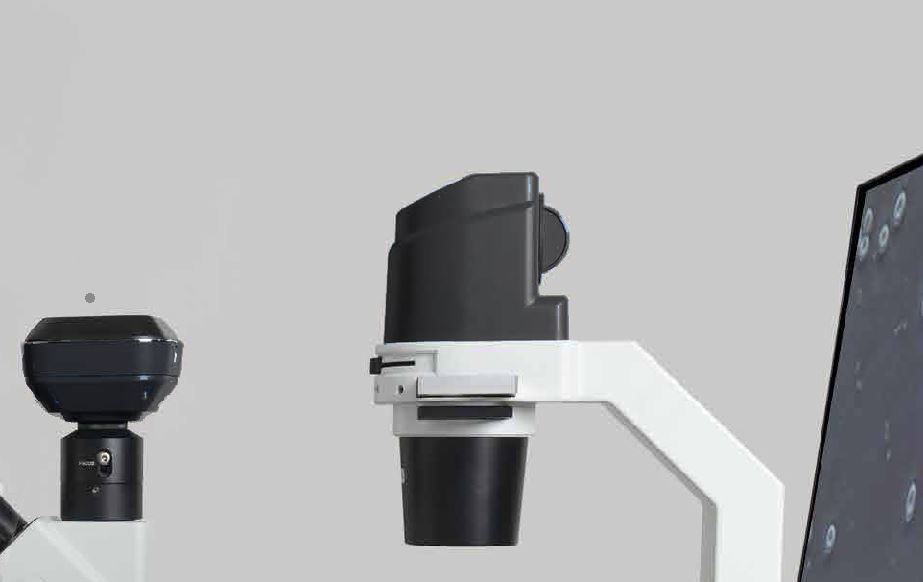

| CCD adaptor | C mount adaptor |
| Fluorescence filter |
(note :four filter cubes can be adjusted and can custom-made.) |
| Camera and Software | Choose from the LMI camera and software guide |
