LMI BM-Prime

Computerized digital imaging, motorized focus and stage control, and automated slide-scanning workflows.

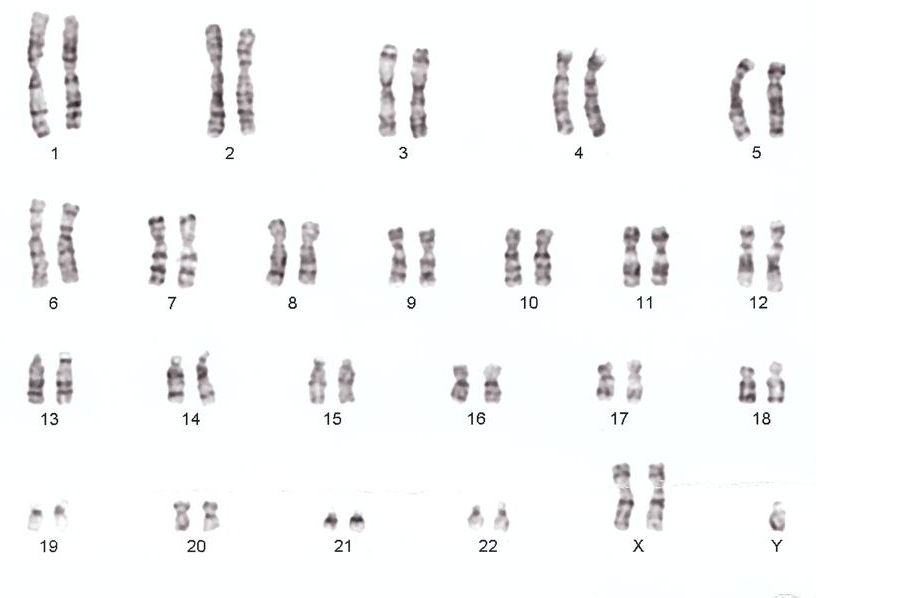

Assisted karyotyping and multichannel FISH image-acquisition and analysis workflows.

High eye-point, wide-field plan eyepiece options: PL10X/20 mm, PL10X/22 mm, PL10X/25 mm and PL10X/26 mm. Reticles can be fitted where required.

PL15X/16 mm high eye-point, wide-field plan eyepiece.

Infinity plan achromatic, phase-contrast and semi-apochromatic fluorescence objective configurations.

Available magnifications across the objective range: 2X, 4X, 10X, 20X, 40X, 60X and 100X.

Efficient infinity Gemel binocular head with 30°–60° adjustable elevation, 360° rotation, 54–75 mm interpupillary adjustment and ±5 diopter adjustment.

30° inclined Gemel binocular head with 360° rotation, 54–75 mm interpupillary adjustment and ±5 diopter adjustment.

30° inclined Gemel trinocular head with R:T 50:50 or R:T 0:100 light split, 360° rotation, 54–75 mm interpupillary adjustment and ±5 diopter adjustment.

Dedicated fluorescence trinocular head with R:T 100:0 or 0:100 light split.

30° inclined digital binocular head with 360° rotation, 54–75 mm interpupillary adjustment and ±5 diopter adjustment.

Integrated all-metal die-cast body with precision rack-and-pinion transmission. Coaxial focus system with upper limit and tension adjustment; 30 mm coarse range, 0.002 mm fine precision and adjustable focus height.

Computer-controlled automatic focus and software-controlled fine-focus adjustment.

Automatic Z-stacking and autofocus, with computer control of the X/Y stage, Z focus axis, or coordinated X/Y and Z operation.

175 × 145 mm rotatable, double-layer mechanical stage with double-slide holder, special anti-corrosive and anti-friction finish, 76 × 50 mm movement range and 0.1 mm precision.

Optional 187 × 167 mm double-layer mechanical stage with 80 × 55 mm movement range and 0.1 mm precision.

N.A. 0.9 swing-out achromatic condenser or N.A. 1.2/0.22 swing-out achromatic condenser.

N.A. 1.25 quintuple phase-contrast condenser.

N.A. 0.9 dry dark-field condenser or N.A. 1.25 oil dark-field condenser.

Filter block: Six-position fluorescence filter-block turret designed for rapid selection of fluorescence channels and future expansion.

UV2 ultraviolet long-pass module: 365 nm central excitation wavelength, with independent intensity adjustment and bright-field/fluorescence switching.

B4 TB module: 455 nm central excitation wavelength, intended for TB fluorescence applications, with independent intensity adjustment and bright-field/fluorescence switching.

B1 band-pass module: 470 nm central excitation wavelength, with independent intensity adjustment and bright-field/fluorescence switching.

G1 band-pass module: 560 nm central excitation wavelength, with independent intensity adjustment and bright-field/fluorescence switching.

Additional fluorescence wavelengths and filter configurations can be selected according to the fluorophores and diagnostic or research application requirements.

XYRFLP reflected-fluorescence Köhler illumination with adjustable field diaphragm and aperture diaphragm; both diaphragms are centre adjustable.

XYLH100HG mercury lamp housing with viewfinder; the viewfinder centre, focal length and filament position are adjustable.

J2-RFLT100 digital mercury-lamp power-control unit with 100–240 V AC wide-voltage input.

OSRAM 100 W DC mercury bulb with disc fluorescence filters for UV, V, B and G channels.

30ND25-RFLP and 30ND50-RFLP attenuation plates.

100–240 V AC wide-voltage input with built-in transmitted Köhler illumination.

Pre-centred 6 V / 30 W halogen illumination with continuously adjustable intensity.

Optional 5 W or 9 W high-brightness LED illumination with continuous intensity adjustment and approximately 50,000-hour service life.

Dual head for two users, tri head for three users, penta head for five users and deca head for ten users.

Three-colour LED pointer with electronic push-button selection of red, blue or green.
