LMI SZM-144 Series
LMI SZM-144 Series

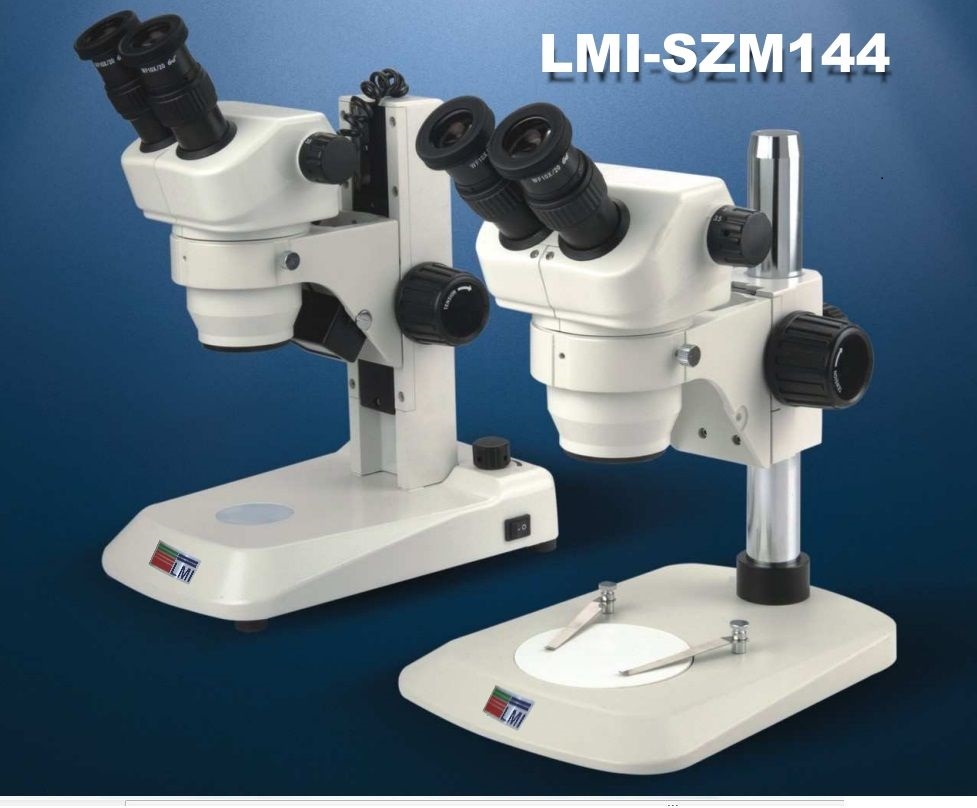

LMI SZM144 Series New optical system with sharp and good contrast images. Compact structure and appearance design for saving space.Be suitable for industry detection.
.................................................
| Model | LMI SZM144 |
|---|---|
| Eyepiece | High eyepiont wide field WF10X/20mm、 WF15X/15mm、WF20X/10mm（reticle mountable） |
| Observation Tube | Binocular head ,45°inclined, |
| interpupillary distance | 54-75mm, both of eyepiece holders with ±5 degrees diopter control. |
| Zoom objective: |
0.80X～3.5X, |
| working distance: | 95mm Trinocular head ,45°inclined, |
| interpupillary distance: | 54-75mm, both of eyepiece holders with ±5 degrees diopter control. |
| Zoom objective: | 0.80X～3.5X, |
| working distance: | 95mm. |
| Splitting ratio binocular: | trinocular =50%:50% Binocular head ,60°inclined, |
| interpupillary distance: | 54-75mm, both of eyepiece holders with ±5 degrees diopter control.. |
| Zoom objective: | 0.80X～3.5X, |
| working distance: | 95mm |
| Zoom objective: | 0.80X～3.5X, |
| working distance: | 95mm |
| Attachment objective : | 0.70X/115mm. |
| Stand: | B4 B5 BL8 The other LED stand or long arm stand Other light: Ring light/LED light/Cold light Other options: Precision measure stage/Dark field condenser/Jewelry clips |
